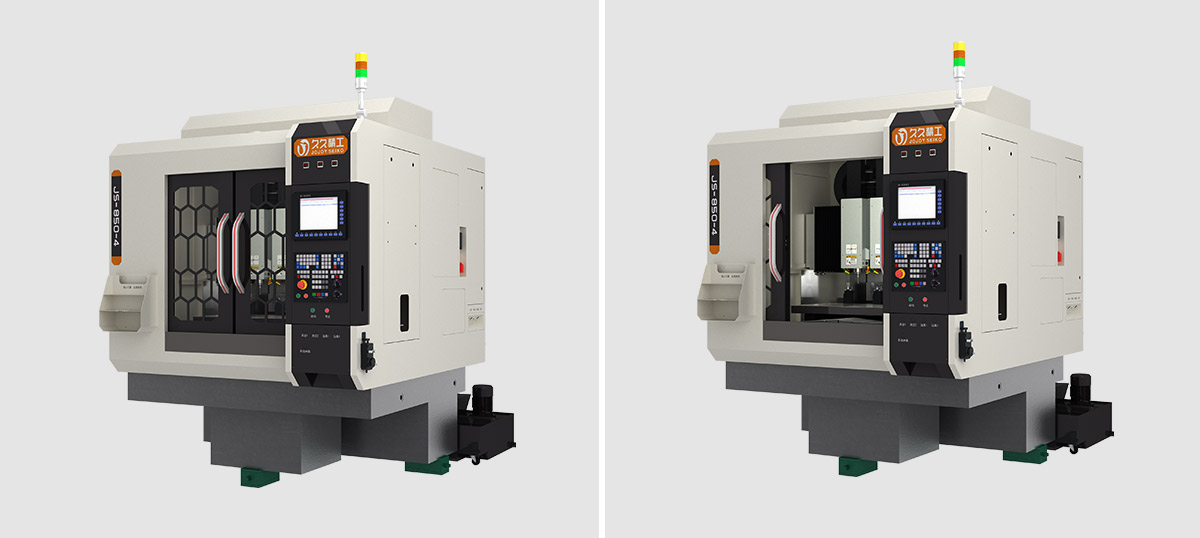

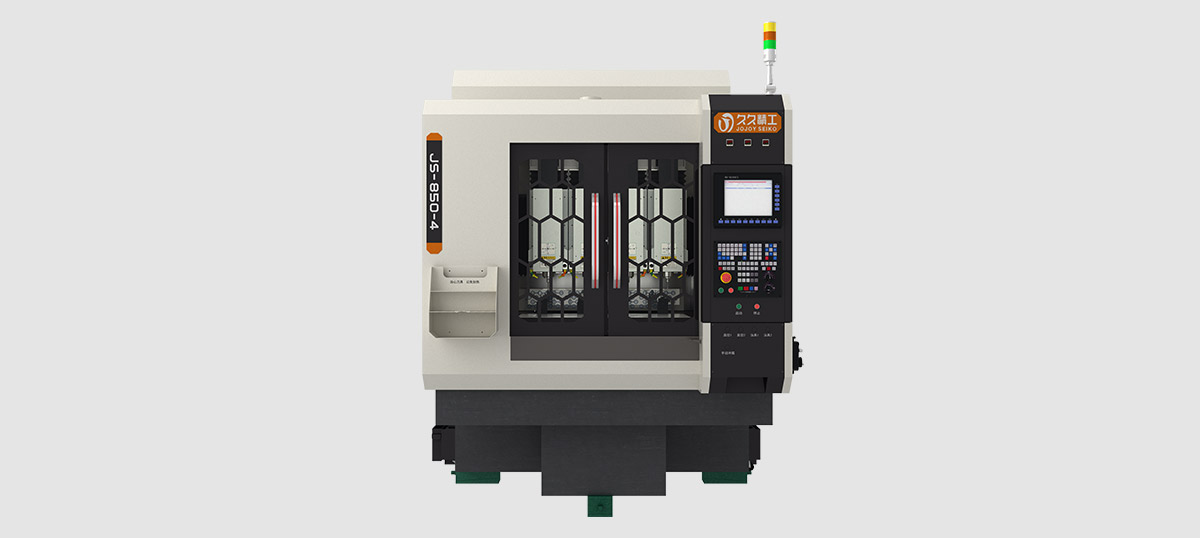

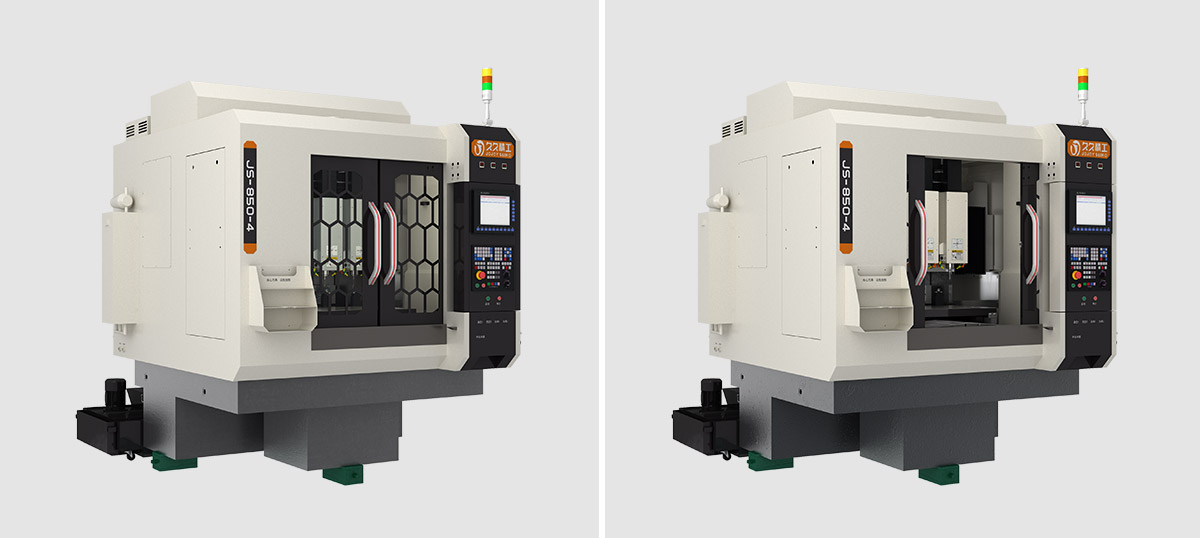

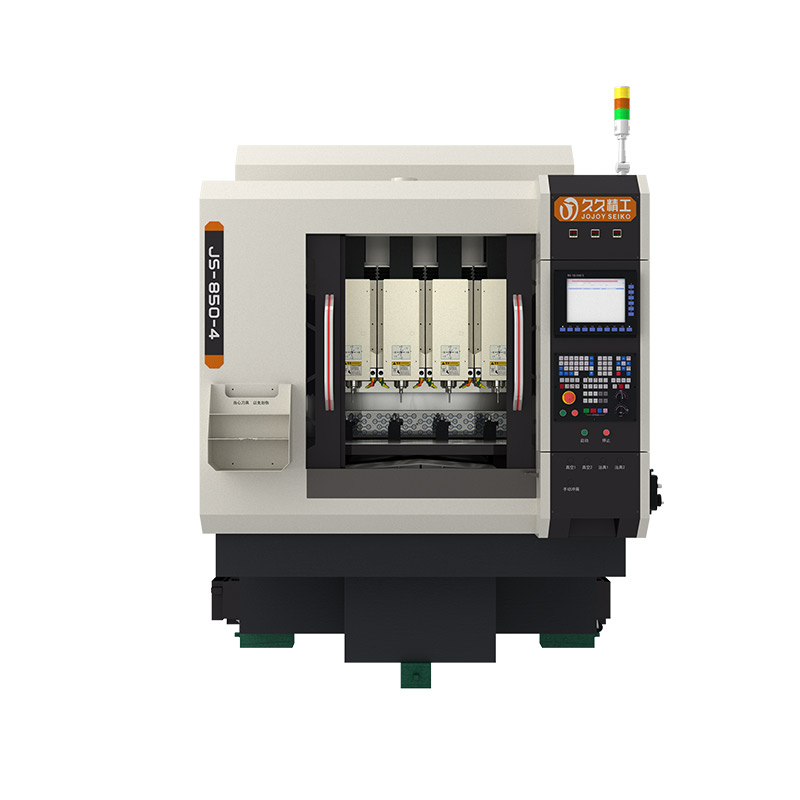

JS-A850-4
| Quantity: | |
|---|---|
Technical Parameters | Unit | Multi-Spindle Carving Machine |
JS-A850-4 | ||
TRAVEL | ||
X-axis | mm | 240 |
Y-axis | mm | 550 |
Z-axis | mm | 120 |
Table top to spindle nose | mm | 180 |
TABLE | ||
Size | mm | 740x460 |
T-slot (No.x Width x Distance) | mm | 12x5x80 |
Max.table load | kg | ≤60 |
SPINDLE | ||
Taper | ISO10/ISO20 | |
Speed | rpm | 60,000/40000 |
Spindle holder | ELECTRIC | |
Power | kw | 2.5/4 |
Spindle distance | mm | 210 |
FEED | ||
Cutting feed rate(XYZ) | m/min | 9 |
Rapid feed rate (XYZ) | m/min | 15 |
ACCURACY | ||
Positioning Accuracy X/Y/Z | mm | ±0.005/300mm |
Repeatability X/Y/Z | mm | ±0.003/300mm |

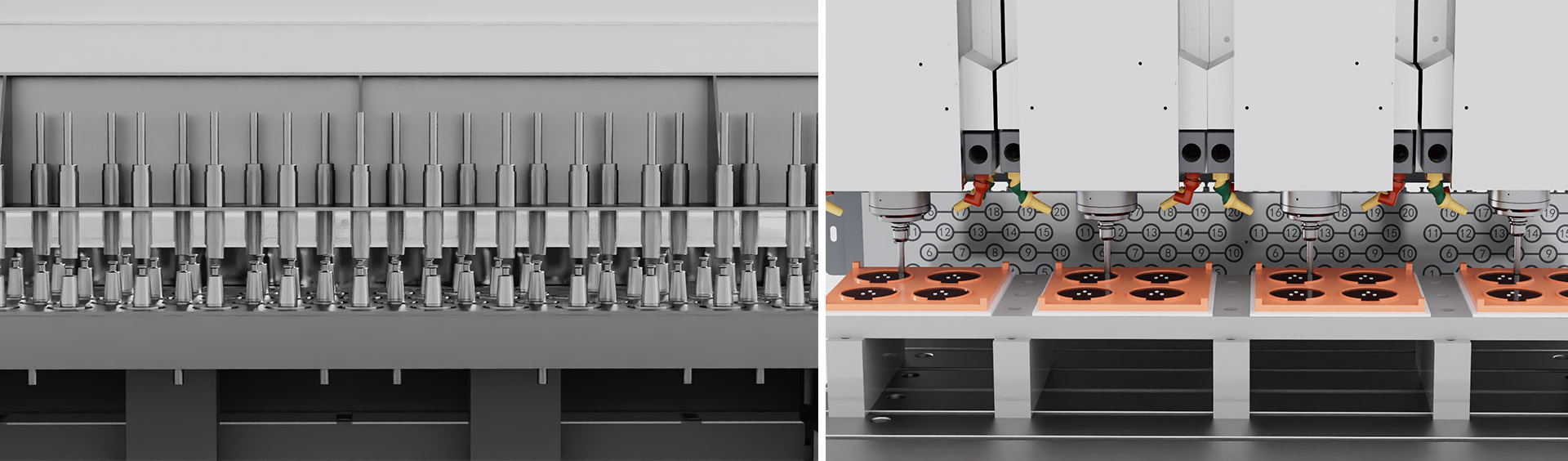

TOOL CHANGE SYSTEM | ||
Tool count | pcs | 20 |
Tool type | ISO10/ISO20 | |
Max.tool length | mm | 40 |
Max.tool Dia | mm | 6 |
Tool magazine form | Y Axis Straight-line | |
MOTOR | ||
CNC controller | SYNTEC | |
X/Y/Z1 | kw | 1.3x1.3x0.45 |
OTHER | ||
Air source required | kgf/cm2 | 6.5 |
Total power consumption | kva | 16 |
Net weight | Kg | 3600 |
Size(length x width x height) | mm | 1850x2400x2100 |
Note:
1. The dimensions and specifications are subject to change without prior notice.
2. The appearance of the machine is constantly being upgraded and adjusted, and the actual shipment shall prevail.
