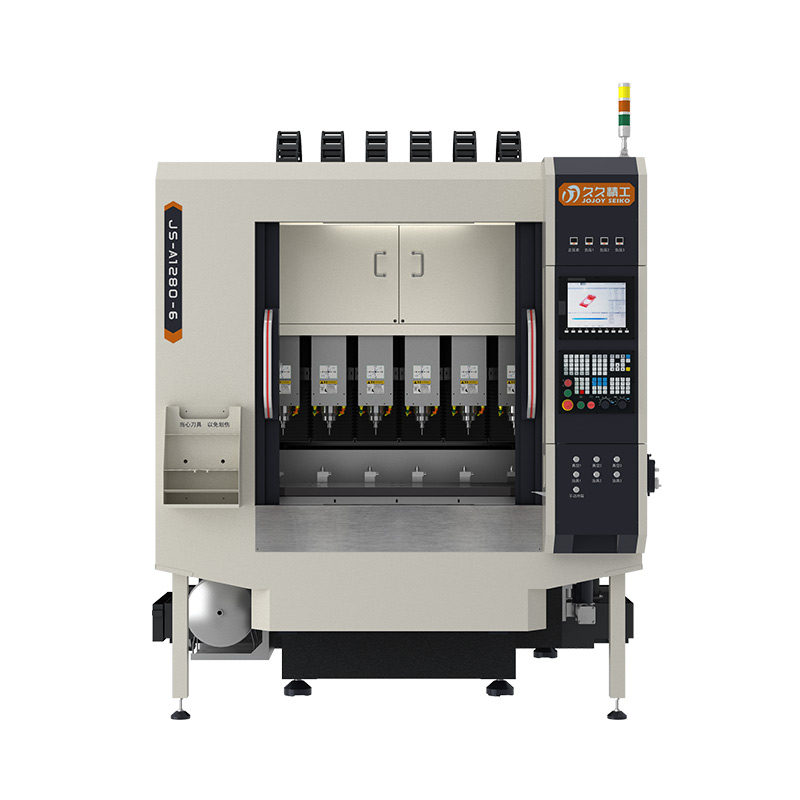

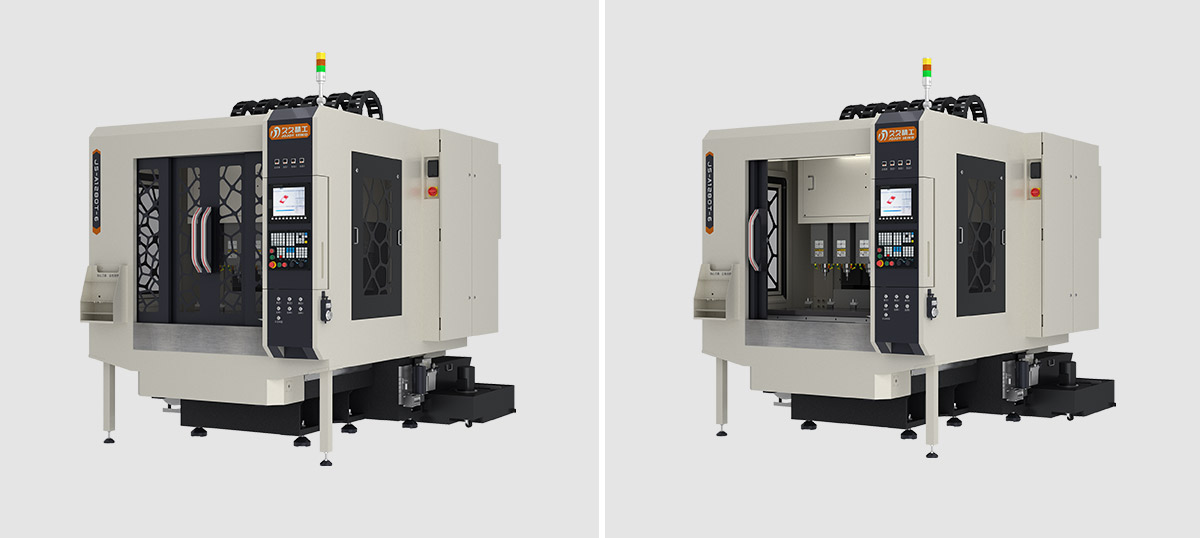

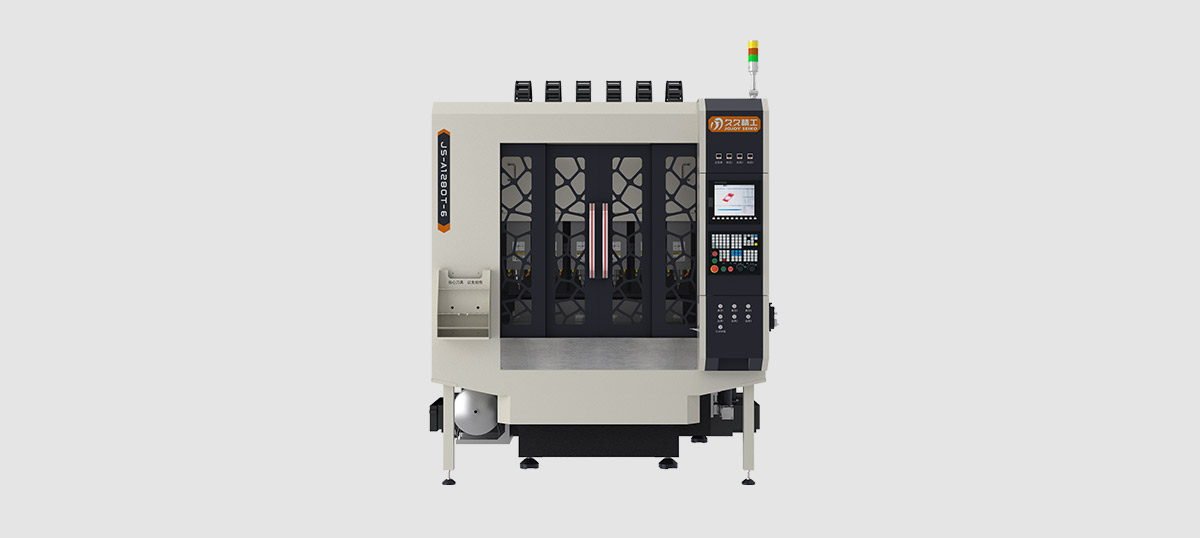

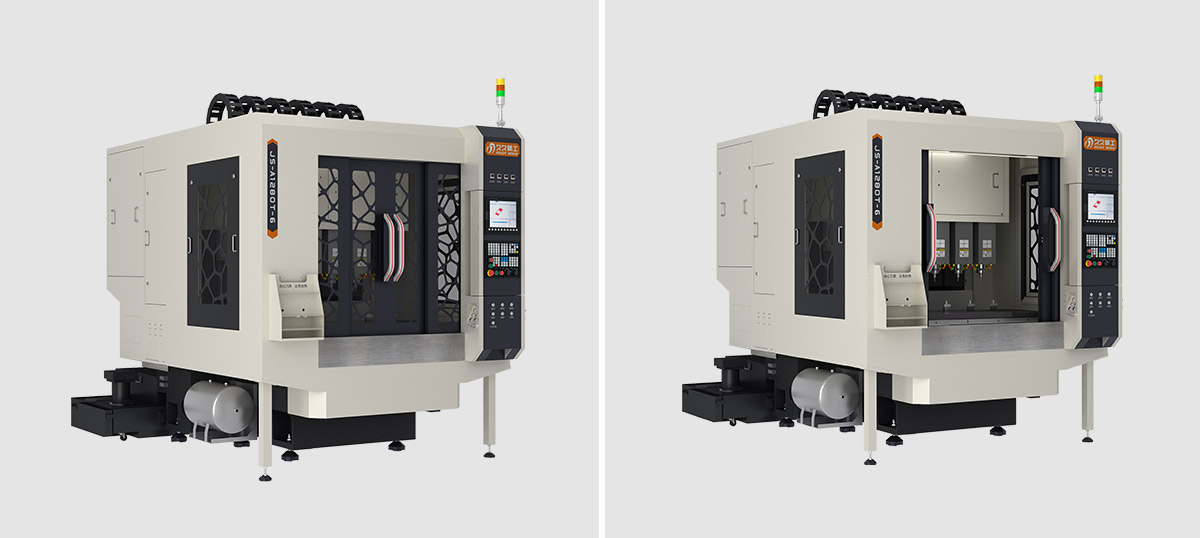

Technical Parameters | Unit | Multi-Spindle Carving Machine |
JS-A1280-6 | ||
Travel & Range | ||
X/Y Travel | mm | 240/420 |
Z-axis Travel | mm | 150*6 |
Distance from spindle nose to countertop | mm | 60-260 |
Worktable | ||
Quantity | - | 1 |
Worktable size | mm | 1280*470 |
Max. loading capacity | Kg | 200 |
T-slot (width/quantity/distance) | mm/pcs/mm | 12/5/80 |
SPINDLE | ||
Quantity | - | 6 |
Distance between spindles | mm | 210 |
Max. spindle speed | rpm | 40000 |
Spindle taper | - | HT 20 |
Spindle power | Kw | 4 |
Drive type | - | Electric |
Spindle cooling system | - | Water cooling |
Controller & Servo System | ||
CNC controller | - | SYNTEC |
X/Y/Z servo motor power | kw | 1.8/1.8 |
Z-axis servo motor power | kw | 0.75*4 |
Servo ATC | ||
Quantity | - | 6 |
Capacity | T | 25T*6 |
Max. tool diameter | mm | 6 |
Max. tool length | mm | 40 |
Feed Rate | ||
X/Y/Z Rapid traverse | mm/min | 25000 |
X/Y/Z Cutting speed | mm/min | 10000 |
Accuracy | ||
X/Y/Z Positioning accuracy | mm | ±0.005/300 |
X/Y/Z Repeatability | mm | ±0.003/300 |
Other Data | ||
Air source required | Kgf/cm2 | 6.5 |
Gross weight | kg | 5000 |
Overall dimension (L*W*H) | mm | 2470*3060*2600 |
Rated voltage | V | AC 380 |
Rated power | kw | 10 |
Note:
1. The dimensions and specifications are subject to change without prior notice.
2. The appearance of the machine is constantly being upgraded and adjusted, and the actual shipment shall prevail.
