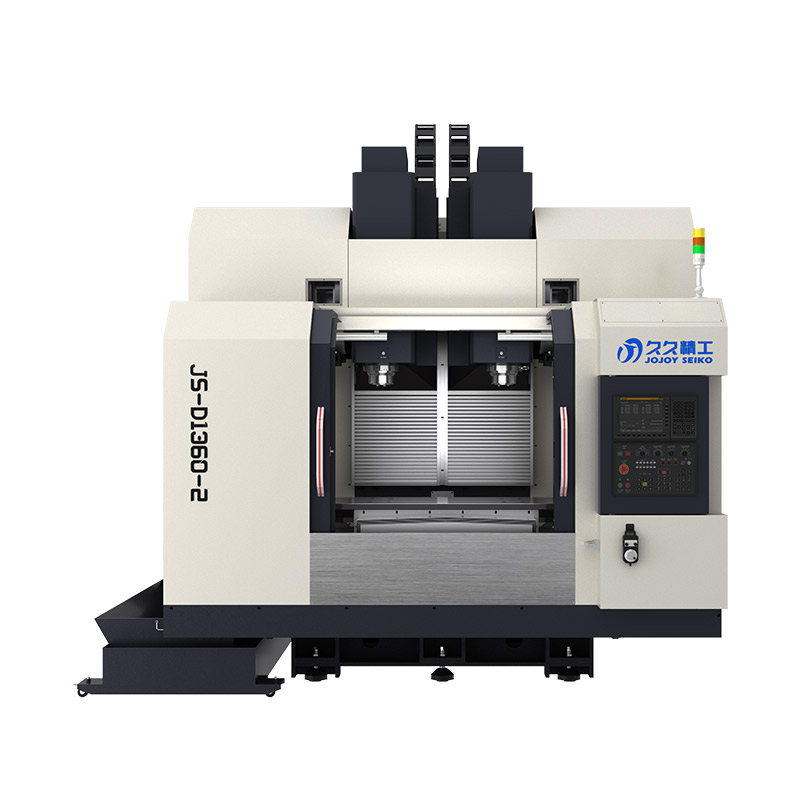

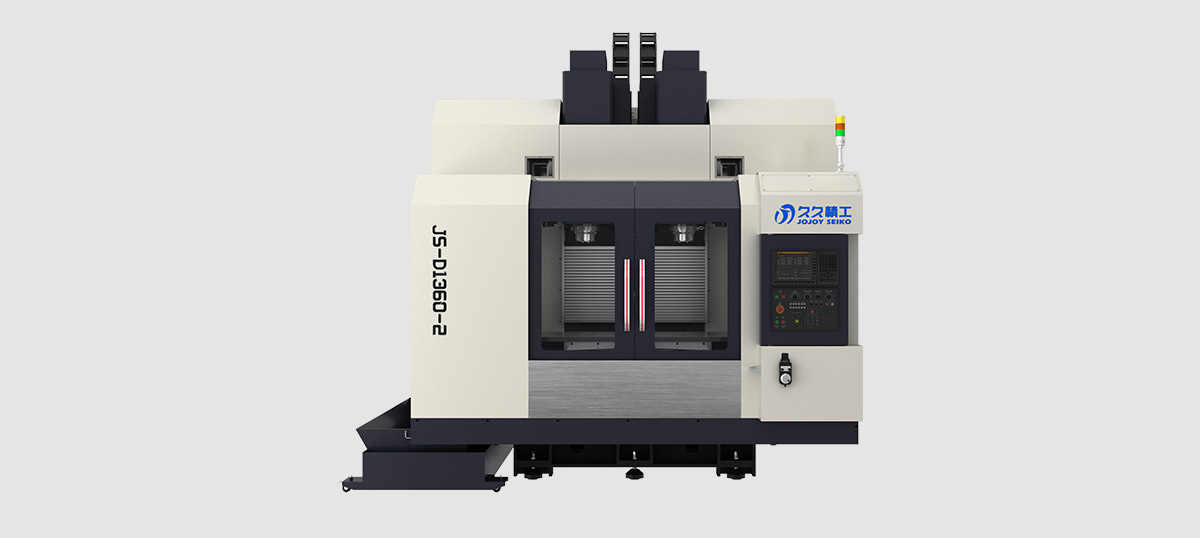

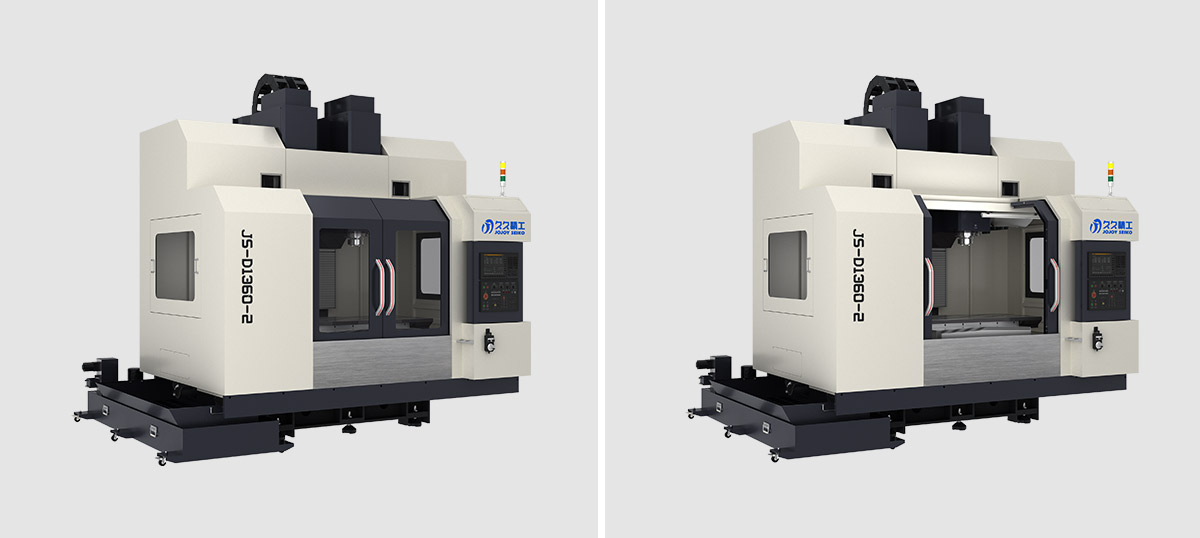

JS-D1360-2
| Quantity: | |
|---|---|
Technical Parameters | Unit | Multi-Spindle Machining Center |
JS-D1360-2 | ||
TRAVEL | ||
X axis | mm | 700 |
Y axis | mm | 650 |
Z axis | mm | 650 |
Table top to spindle nose | mm | 150-800 |
TABLE | ||
size | mm | 1300x1600 |
T-slot (No.x Width x Distance) | mm | 5x18x100 |
Max.table load | Kg | 600 |
SPINDLE | ||
Taper | BT40 | |
speed | rpm | 10000/12000 |
spindle holder | DIRECT | |
Power | Kw | 7.5/11 |
Spindle distance | mm | 680 |
FEED | ||
Cutting feed rate(XYZ) | m/min | 10 |
Rapid feed rate (XYZ) | m/min | 36 |
ACCURACY | ||
Positioning Accuracy X/Y/Z | mm | ±0.005/300 |
Repeatability X/Y/Z | mm | ±0.003/300 |
TOOL CHANGE SYSTEM | ||
Tool count | pcs | 2x24 |
Tool type | BT40 | |
Max. tool weight | kg | 8 |
Max.tool length | mm | 300 |
Max.tool Dia | mm | 80 |
Tool magazine form | Arm | |
MOTOR | ||
CNC controller | SYNTEC | |
X/Y/Z1 | Kw | 3.6/4.6 |
OTHER | ||
Air source required | Kgf/cm2 | 6 |
Total power consumption | KVA | 35 |
Net weight | Kg | 7500 |
Size(length x width x height) | mm | 2730x2925x2920 |
Note:
1. The dimensions and specifications are subject to change without prior notice.
2. The appearance of the machine is constantly being upgraded and adjusted, and the actual shipment shall prevail.
