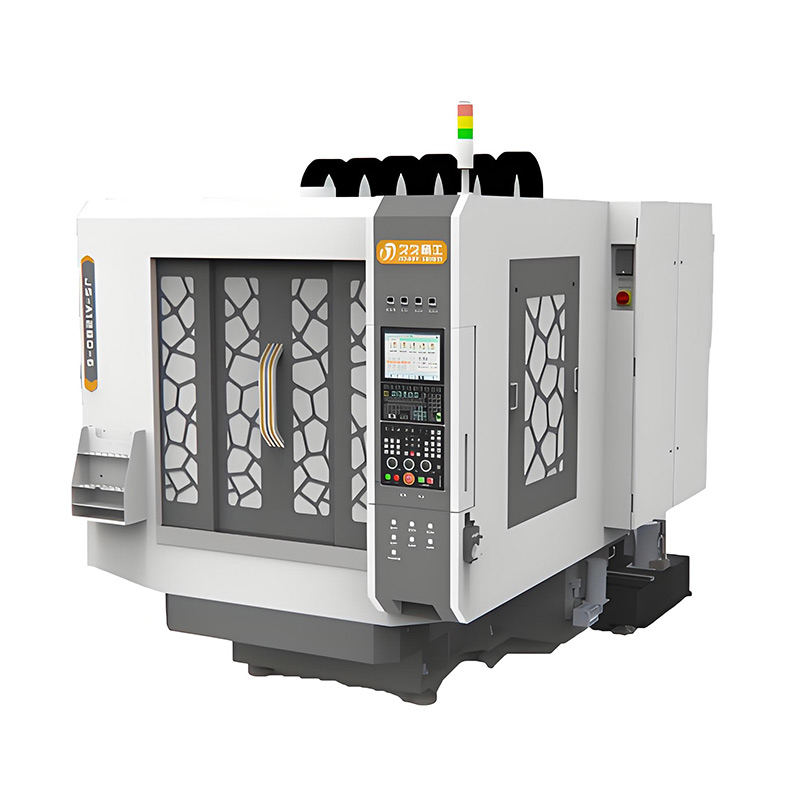

JS-A1280T-5
| Quantity: | |
|---|---|
Technical Parameters | Unit | Multi-Spindle Machining Center |
JS-A1280T-5 | ||
TRAVEL | ||
X-axis | mm | 300 |
Y-axis | mm | 450 |
Z-axis | mm | 250 |
Table top to spindle nose | mm | 150-400 |
TABLE | ||
Size | mm | 1280x470 |
T-slot (No.x Width x Distance) | mm | 14x5x80 |
Max.table load | kg | ≤200 |
SPINDLE | ||
Taper | BT30/ISO25 | |
Speed | rpm | 30,000/36,000 |
Spindle holder | ELECTRIC | |
Power | kw | 7.5/6.5 |
Spindle distance | mm | 260 |
FEED | ||
Cutting feed rate(XYZ) | m/min | 10 |
Rapid feed rate (XYZ) | m/min | 30 |
ACCURACY | ||
Positioning Accuracy X/Y/Z | mm | ±0.005/300 |
Repeatability X/Y/Z | mm | ±0.003/300 |
TOOL CHANGE SYSTEM | ||
Tool count | pcs | 20/24 |
Tool type | BT30/ISO25 | |
Max.tool length | mm | 80 |
Max.tool Dia | mm | 16/13 |
Tool magazine form | straight-line | |
| MOTOR | ||
CNC controller | SYNTEC | |
X/Y/Z1 | kw | 1.8x1.8x1.8 |
OTHER | ||
Air source required | kgf/cm2 | 6.5 |
Total power consumption | kva | 19/16 |
Net weight | kg | 5200 |
Size(length x width x height) | mm | 2150x2880x2250 |
Note:
1. The dimensions and specifications are subject to change without prior notice.
2. The appearance of the machine is constantly being upgraded and adjusted, and the actual shipment shall prevail.
