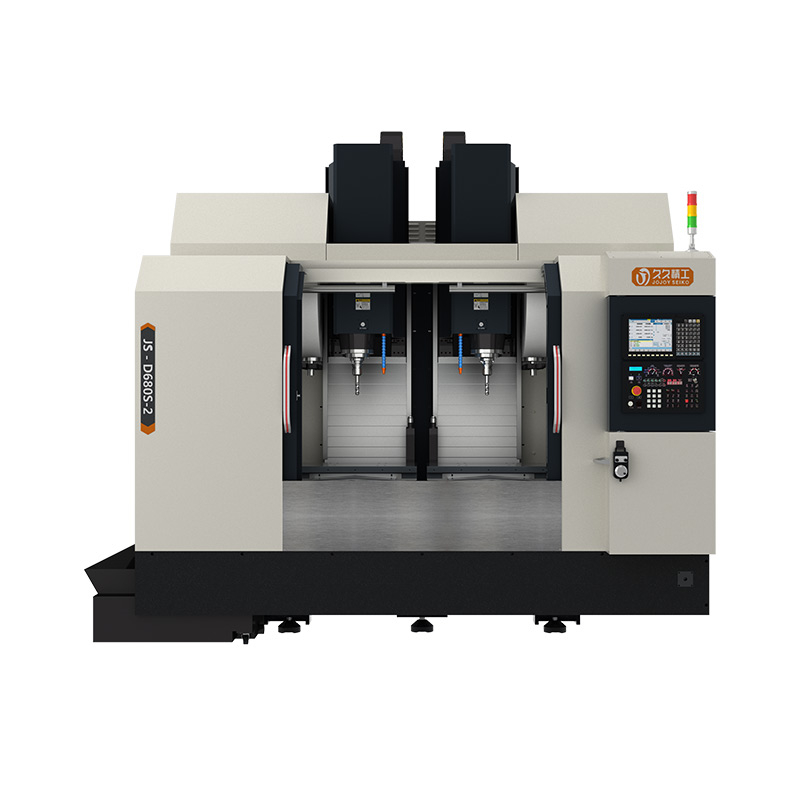

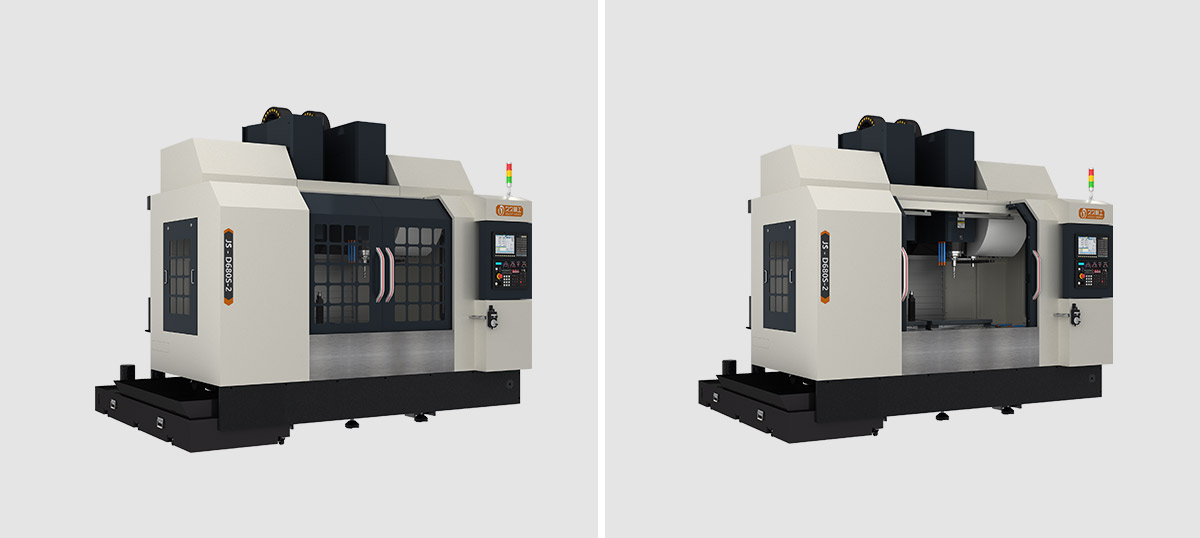

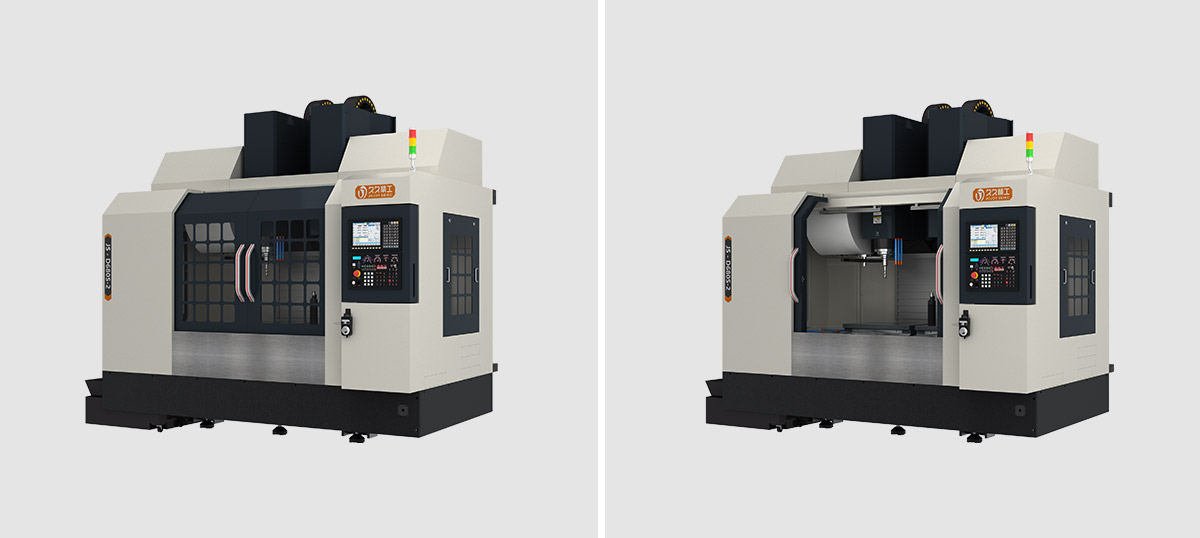

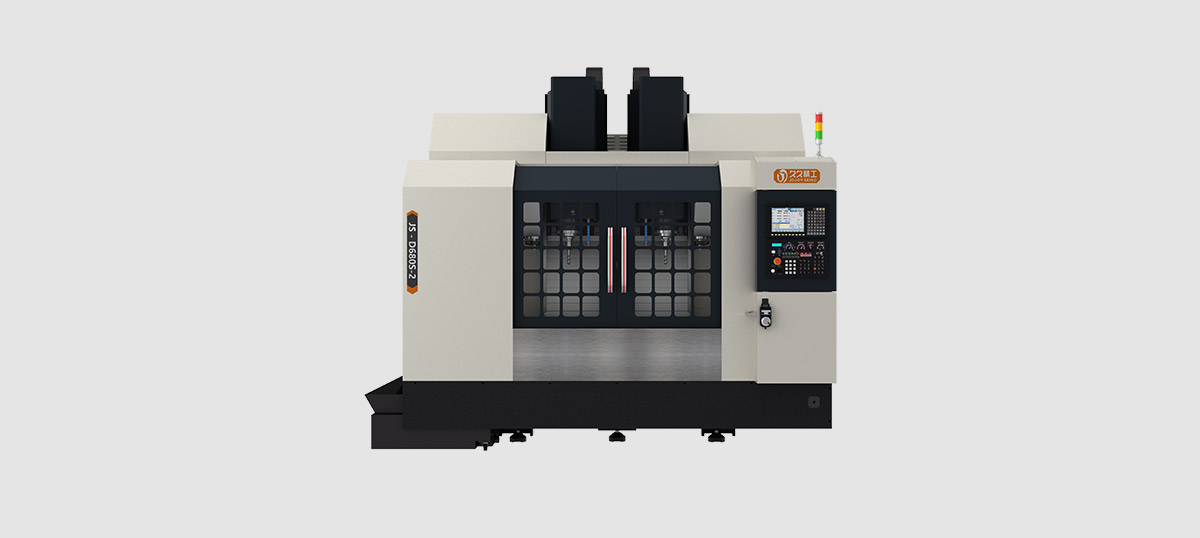

Technical Parameters | Unit | Multi-Path Machining Center |
JS-D680S-2 | ||
Travel & Range | ||
X-axis Travel | mm | 680*2 |
Y-axis Travel | mm | 500*2 |
Z-axis Travel | mm | 500*2 |
Distance from spindle nose to countertop | mm | 120-620 |
Worktable | ||
Quantity | - | 2 |
Worktable size | mm | 680*450 |
Max. loading capacity | Kg | 300 |
T-slot (width/quantity/distance) | mm/pcs/mm | 14/5/80 |
SPINDLE | ||
Quantity | - | 2 |
Max. spindle speed | rpm | 12000 |
Spindle taper | - | BT 40 |
Spindle power | Kw | 11 |
Drive type | - | Direct-drive(opt.) |
Spindle cooling system | - | Oil cooling (opt.) |
Controller & Servo System | ||
CNC controller | - | SYNTEC |
X/Y/Z servo motor power | kw | 2.4/2.4/3.9*2 |
Servo ATC | ||
Quantity | - | 2 |
Capacity | T | 24T*2 |
Max. tool diameter | mm | 78 |
Max. tool length | mm | 250 |
Max. tool weight | kg | 8 |
Tool-to-tool | S | 2 |
Feed Rate | ||
X/Y/Z Rapid traverse | mm/min | HuazhongCNC |
X/Y/Z Cutting speed | mm/min | 4.6x3.6x4.6 |
Accuracy | ||
X/Y/Z Positioning accuracy | mm | ±0.005/300 |
X/Y/Z Repeatability | mm | ±0.005/300 |
Other Data | ||
Air source required | Kgf/cm2 | 6.5 |
Gross weight | kg | 7000 |
Overall dimension (L*W*H) | mm | 3150*2580*2560 |
Rated power | kw | 45 |
Note:
1. The dimensions and specifications are subject to change without prior notice.
2. The appearance of the machine is constantly being upgraded and adjusted, and the actual shipment shall prevail.
