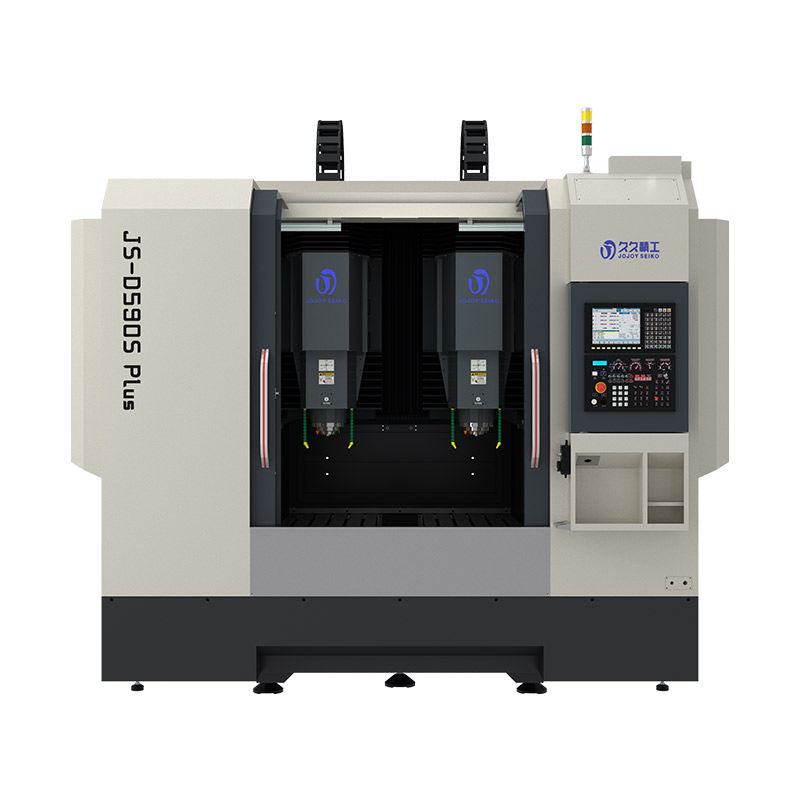

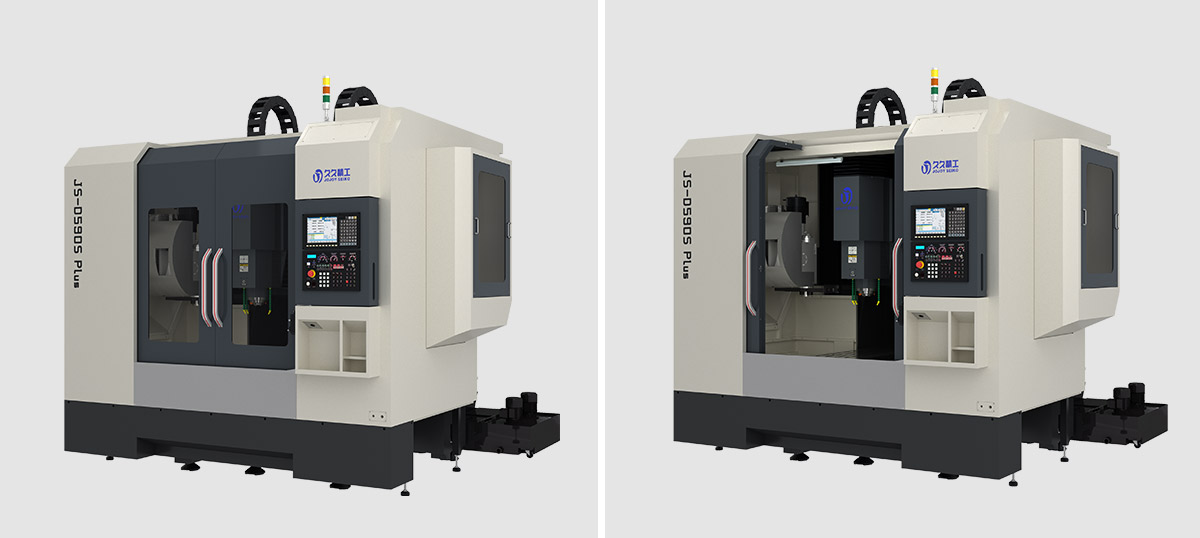

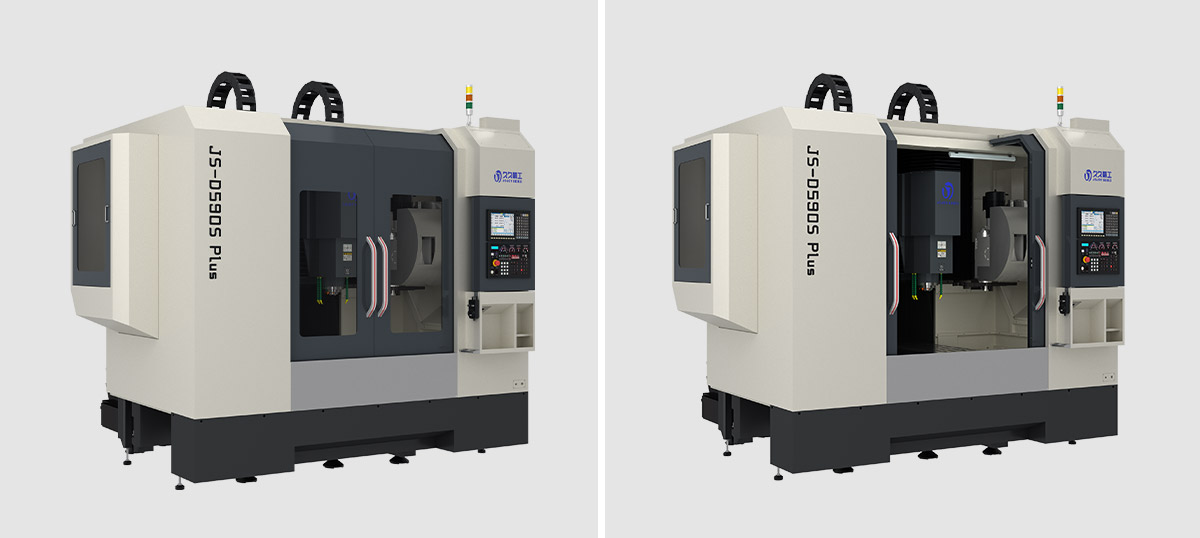

JS-D590S-2
Availability: | |
---|---|
Quantity: | |
Technical Parameters | Unit | Multi-Path Machining Center |
JS-D590S-2 | ||
TRAVEL | ||
X-axis | mm | 500 |
Y-axis | mm | 800 |
Z-axis | mm | 450 |
Table top to spindle nose | mm | 150-600 |
TABLE | ||
Size | mm | 500x1100 |
T-slot (No.x Width x Distance) | mm | 5x18x80 |
Max.table load | kg | 400 |
SPINDLE | ||
Taper | BT40 | |
Speed | rpm | 12000 |
Spindle holder | DIRECT | |
Power | kw | 11/15 |
Spindle distance | mm | 600 |
FEED | ||
Cutting feed rate(XYZ) | m/min | 10 |
Rapid feed rate (XYZ) | m/min | 36 |
ACCURACY | ||
Positioning Accuracy X/Y/Z | mm | ±0.005 |
Repeatability X/Y/Z | mm | ±0.003 |
TOOL CHANGE SYSTEM | ||
Tool count | pcs | 2x32 |
Tool type | BT40 | |
Max.tool length | mm | 250 |
Max.tool Dia | mm | 78 |
Tool magazine form | Arm | |
MOTOR | ||
CNC controller | SYNTEC | |
X/Y/Z1 | kw | 4.6/3.6/4.6 |
OTHER | ||
Air source required | kgf/cm2 | 35 |
Total power consumption | kva | 16 |
Net weight | kg | 7000 |
Size(length x width x height) | mm | 3120x2450x2680 |
Note:
1. The dimensions and specifications are subject to change without prior notice.
2. The appearance of the machine is constantly being upgraded and adjusted, and the actual shipment shall prevail.
