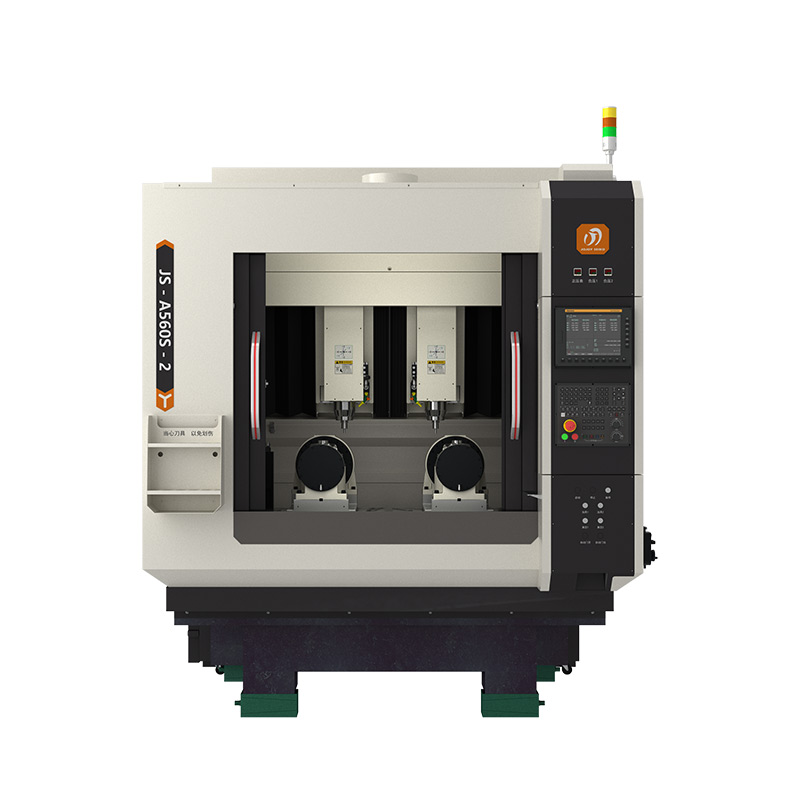

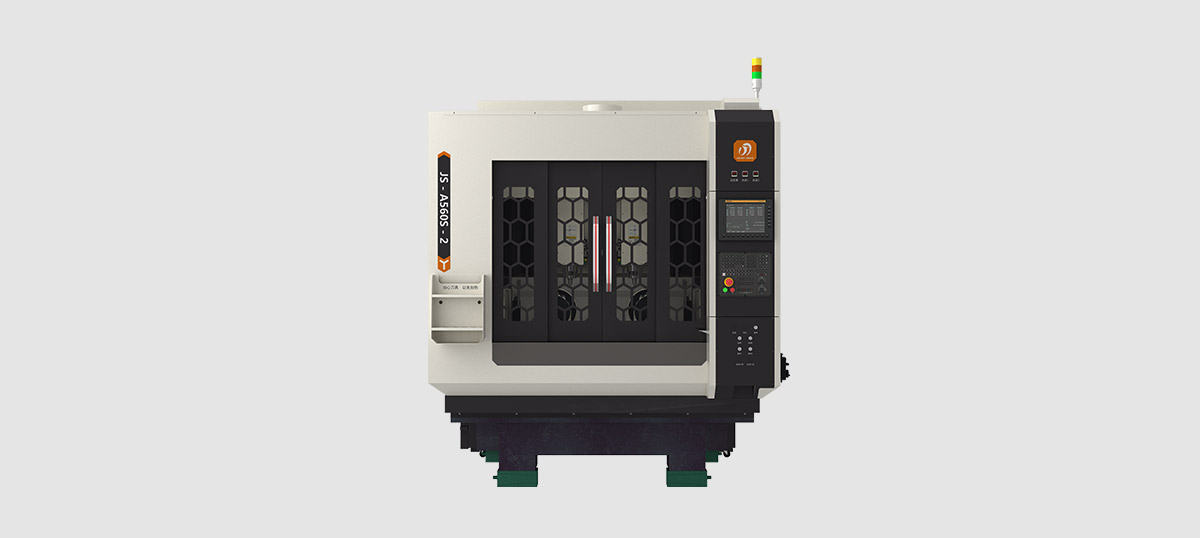

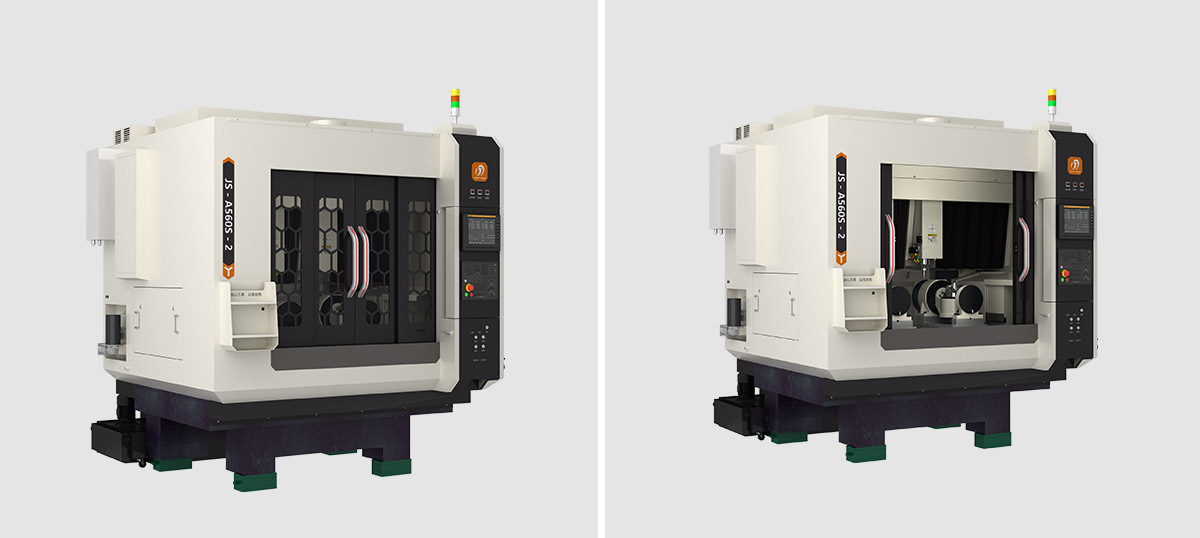

JS-A560S-2
| Quantity: | |
|---|---|
Technical Parameters | Unit | Multi-Path Carving Machine |
JS-A560S-2 | ||
TRAVEL | ||
X-axis | mm | 450 |
Y-axis | mm | 560 |
Z-axis | mm | 180 |
Table top to spindle nose | mm | 210-410 |
TABLE | ||
Size | mm | 565x600 |
T-slot (No.x Width x Distance) | mm | 12x7x80 |
Max.table load | kg | 150 |
SPINDLE | ||
Taper | ISO20/ISO25 | |
Speed | rpm | 40,000/36,000 |
Spindle holder | ELECTRIC | |
Power | kw | 4/6 |
FEED | ||
Cutting feed rate(XYZ) | m/min | 9 |
Rapid feed rate (XYZ) | m/min | 15 |
ACCURACY | ||
Positioning Accuracy X/Y/Z | mm | ±0.005/300 |
Repeatability X/Y/Z | mm | ±0.003/300 |
TOOL CHANGE SYSTEM | ||
Tool count | pcs | 23+1 |
Tool type | ISO20/ISO25 | |
Max.tool weight | kg | / |
Max.tool length | mm | 40 |
Max.tool Dia | mm | 6 |
Tool magazine form | Double Disc | |
MOTOR | ||
CNC controller | SYNTEC | |
X/Y/Z1 | kw | 0.85x0.85x0.75 |
OTHER | ||
Air source required | kgf/cm2 | 6.5 |
Total power consumption | kva | 14 |
Net weight | kg | 4000 |
Size(length x width x height) | mm | 2122x2160×2276 |
Note:
1. The dimensions and specifications are subject to change without prior notice.
2. The appearance of the machine is constantly being upgraded and adjusted, and the actual shipment shall prevail.
