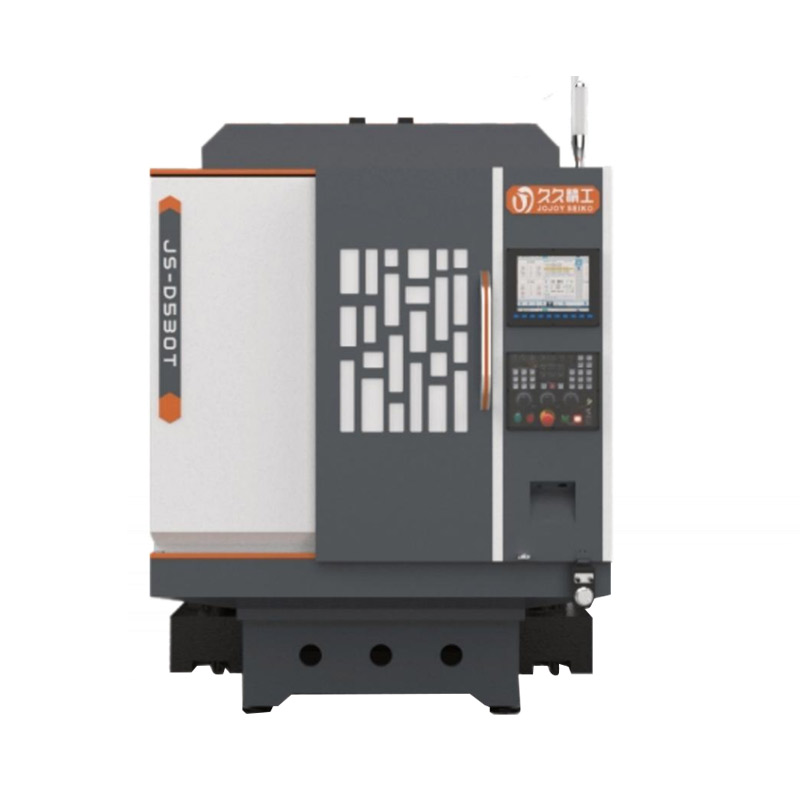

JS-D530T
Availability: | |
---|---|
Quantity: | |
Technical Parameters | Unit | Intelligent Special Alloys Machining Machine |
JS-D530T | ||
TRAVEL | ||
X-axis | mm | 400 |
Y-axis | mm | 300 |
Z-axis | mm | 320 |
Table top to spindle nose | mm | 110-430 |
TABLE | ||
Size | mm | 500x300 |
T-slot (No.x Width x Distance) | mm | 3x14x80 |
Max.table load | kg | 250 |
SPINDLE | ||
Taper | BT30 | |
Speed | rpm | 20,000 |
Spindle holder | DIRECT | |
Power | kw | 3.7/5.5 |
FEED | ||
Cutting feed rate(XYZ) | m/min | 12 |
Rapid feed rate (XYZ) | m/min | 48 |
ACCURACY | ||
Positioning Accuracy X/Y/Z | mm | 0.005 |
Repeatability X/Y/Z | mm | 0.003 |
TOOL CHANGE SYSTEM | ||
Tool count | pcs | 21 |
Tool type | BT30 | |
Max.tool weight | kg | 3 |
Max.tool length | mm | 200 |
Max.tool Dia | mm | 80 |
Tool magazine form | Clamp-arm | |
MOTOR | ||
CNC controller | SYNTEC | |
X/Y/Z1 | kw | 2.2x2.2x3 |
OTHER | ||
Air source required | kgf/cm2 | 6 |
Total power consumption | kva | 15 |
Net weight | kg | 2.5T |
Size(length x width x height) | mm | 1700x2200x2300mm |
Note:
1. The dimensions and specifications are subject to change without prior notice.
2. The appearance of the machine is constantly being upgraded and adjusted, and the actual shipment shall prevail.
